On board or from ashore
See vessel data wherever you are
Monitor the vessel's position, battery status, tanks, engines, bilge level, shore power and other connected systems through the onboard dashboard, web app or mobile app.
Integrated smart vessel platform
One system. Total control. Anytime. Anywhere.
Nautech brings existing onboard systems into one connected platform for live vessel data, remote control and automation, across a single vessel or an entire fleet.
Brand-agnostic by design, it integrates technologies across different manufacturers and networks without locking operators into a single ecosystem.
- Live monitoringData from instruments, engines and onboard systems
- Remote controlPower, switching and connected equipment
- AutomationConfigurable rules, alarms and coordinated responses
- One vessel or a fleetShared access through the app and web dashboard
Platform capabilities
Monitor, control and respond wherever the vessel is
Digital switching
Control configured onboard systems
Control connected lights, pumps and other configured loads from the app or dashboard. Use pre-configured rule sets for harbour, coastal or offshore operation.
Alarms and automation
Respond when conditions change
Set alarm thresholds for connected values and notify the relevant people when an event occurs. Where configured, automation rules can activate a relay, isolate a load or record camera footage around the event.
Alarms and automation
Beyond monitoring: from awareness to action
Set thresholds for the values that matter, such as low battery voltage, high bilge level, loss of shore power or high coolant temperature. Nautech Core monitors connected systems on board, evaluates events even without mobile coverage and can alert designated users or trigger a configured response.
Continuous monitoring
Define upper and lower thresholds for connected values. Built-in hysteresis prevents repeated alerts caused by normal fluctuations, while alarm states and event history are recorded and available for review.
Automated response
A rule can activate a configured relay, isolate a load or record camera footage around an event. Presets provide pre-configured rule sets for harbour, coastal or offshore operation.
Geofence monitoring
Create geofences around a berth, marina or other defined area. Entry, exit and proximity events are evaluated on board and logged with position and time.
Role-based notifications
Assign owners, skippers, technicians or operators to the relevant vessels. Each person receives the vessel data and notifications relevant to their role.
Apps
One platform, on your phone and in your browser
The mobile app and web dashboard use the same live and historical vessel data. Settings, alarms, automation rules and access permissions remain consistent from a single-vessel view to fleet-wide oversight.
Mobile app
On Android and iOS, view live vessel data, map position, alarms, routes, digital switching and onboard cameras. Receive push notifications, review active and resolved alarms and use red night mode at the helm.
- Live RTSP video from onboard cameras
- Digital switching with presets
- Last received vessel data remains available offline
- Home screen widget on iOS
- Available in ten languages
Explore the mobile app preview.
Web dashboard
Sign in at dashboard.nautech.cloud from any browser or install the web app. Arrange live values as cards, gauges and charts, customise the grid and see alarm states at a glance.
- Cards, gauges and history charts
- Notifications, switches, cameras and routes
- Light, dark and auto themes
- HMI panel with live values on your own drawing
Explore the pages, charts, switches and map in the interactive preview.
Dashboard
Coolant temperature
Engine 1 · starboard
96°C
Engine speed
Engine 1
1980rpm
Fuel
Tank 1 · diesel
62%
Fresh water
Tank 2
35%
House bank voltage
Electrical · service
12.6V
Apparent wind speed
Wind
12.7kn
Apparent wind direction
Wind
312°
Depth
Depth transducer
18.4m
Sea temperature
Water temperature
23.1°C
Switches
Anchor light
Fridge
Deck wash
Cockpit
● REC
Outside temperature
Source not reporting
No data
Add a card
This interactive preview uses an example vessel and simulated data. It demonstrates the dashboard layout and selected functions; nothing shown here controls a real vessel. The working application is available at dashboard.nautech.cloud.
From one vessel to the entire fleet
Charter operators, marinas and fleet managers can view vessel positions, connectivity, open alarms, switches and cameras on one screen. Assign users by vessel and role, from individual access to fleet-wide oversight.
Night Watch mode
Designed for use after dark
Switch to Night Watch mode for a low-light interface designed for onboard use at night, while keeping the same familiar layout.
- Light, dark and Night Watch modes
- Switch between display modes manually
How it works
One connected system, from vessel to screen
Aboard
Nautech Core connects to the vessel's NMEA 2000 backbone and compatible NMEA 0183 and IP-based systems. It reads connected data and records it locally before synchronising with the cloud.
Cloud
Over 4G, Nautech Core synchronises live data, history, alarms, automation rules, geofences and user permissions with Nautech Cloud.
Anywhere
Authorised users access the same live data, history, alarms and configured controls through the mobile app, web dashboard or fleet view.
Aboard
core
- NMEA 2000 · CAN bus
- NMEA 0183
- GNSS and compass
- Relays and contact inputs (PRO)
- IP cameras over RTSP
Local database, works offline
Internal battery · IP68
4G over TLS
Cloud
Nautech Cloud
- Live updates to the apps
- Historical database
- Alarms
- Automation rules
- Geofences
Role-based access per vessel
Push and email notifications
Anywhere
Web app
- Browser-based and installable
Mobile app
- Android · iOS
Alarms, geofences and configured automation rules are evaluated on board, so essential responses continue when mobile coverage is unavailable.
Open architecture: Nautech Core works with NMEA 2000, NMEA 0183 and compatible IP-based systems, allowing compatible existing onboard equipment to be integrated. Additional modules and vessels can be added as requirements grow.
Routes and logbook
Every journey, automatically recorded
Nautech Core records vessel position while the vessel is moving, building route and trip history without requiring anyone to start a stopwatch. Review recorded tracks and previous passages together with duration, distance and available operating data.
Hardware
Three core configurations
All three configurations use the same IP68 housing and Nautech Cloud platform. They differ in onboard interfaces, digital-switching capabilities and support for advanced integrations.
Sealed Gigabit Ethernet
NMEA 2000 backbone
Status LEDs
Passively cooled IP68 aluminium housing
Flanges for a bulkhead mount

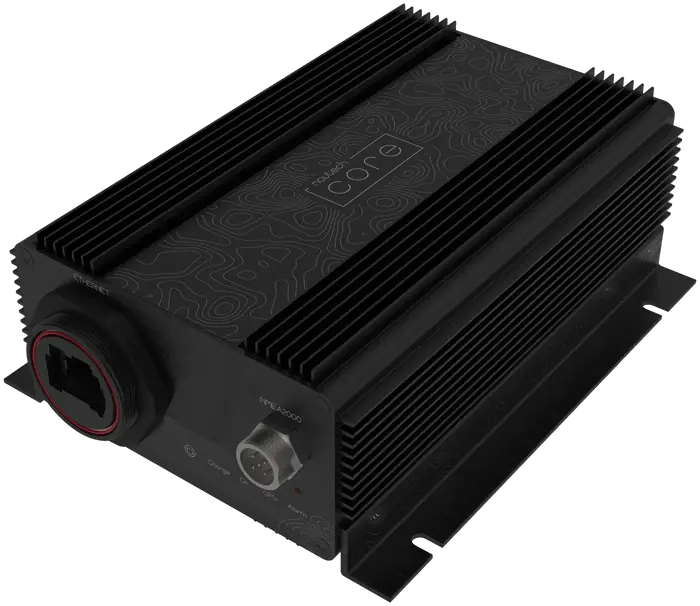

core
Essential monitoring for coastal sailing
Connects Ethernet, NMEA 2000, 4G, GNSS and alarm interfaces for vessel monitoring, history and remote access.

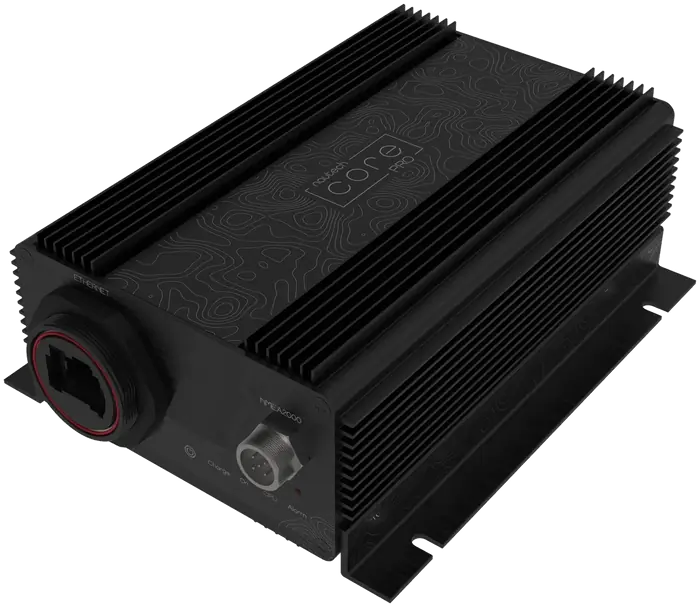

core PRO
Offshore monitoring and control
Adds four relay outputs and four contact inputs for digital switching, together with a 3D accelerometer and NMEA 2000 AIS processing.

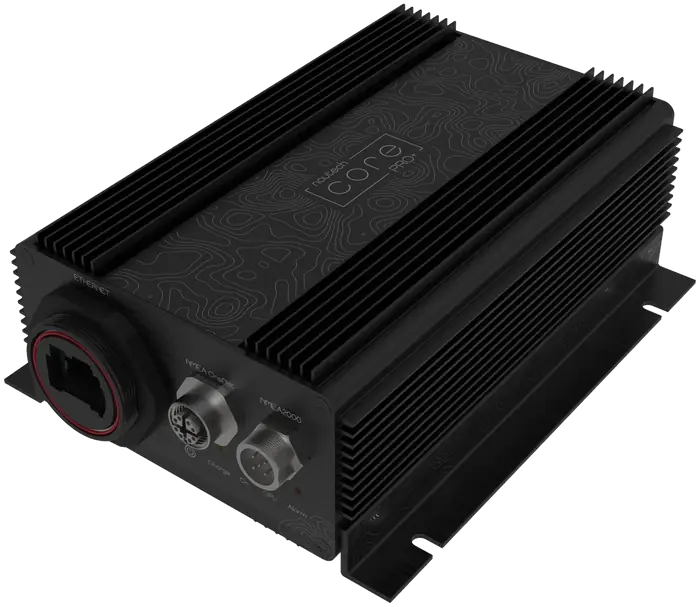

core PRO+
Advanced integration for offshore applications
Includes the capabilities of core PRO, plus an NMEA OneNet port over Gigabit Ethernet and SEA.AI alarm integration.
| Specification | core | core PRO | core PRO+ |
|---|---|---|---|
| Housing | IP68, standalone | IP68, standalone | IP68, standalone |
| Internal battery | Yes | Yes | Yes |
| GNSS receiver | Yes | Yes | Yes |
| NMEA 2000 and NMEA 0183 | Galvanically isolated | Galvanically isolated | Galvanically isolated |
| 4G modem | Managed subscription | Managed subscription | Managed subscription |
| Connectors | Ethernet, NMEA 2000, 4G, GNSS, alarm | As core | As core |
| Compass | Integrated | Integrated with 3D accelerometer | Integrated with 3D accelerometer |
| Power measurement | Yes | Yes | Yes |
| Digital switching | — | 4 relay outputs, 4 contact inputs | 4 relay outputs, 4 contact inputs |
| NMEA 2000 AIS processing | — | Yes | Yes |
| SEA.AI alarm integration | — | — | Yes |
| NMEA OneNet port | — | — | Gigabit Ethernet |
| Options | — | NMEA 0183, AIS receiver, switch extender | NMEA 0183, AIS receiver, switch extender |
| Cloud dashboard | Included | Included | Included |
| History | Cloud and local | Cloud and local | Cloud and local |
The modular system
Expand the system as requirements grow
Nautech Core is the central module in the Nautech system. Additional modules extend connectivity, signal processing and digital switching close to the relevant sensors and loads. Each module communicates over NMEA 2000 and shares the same environmental rating.
Available now

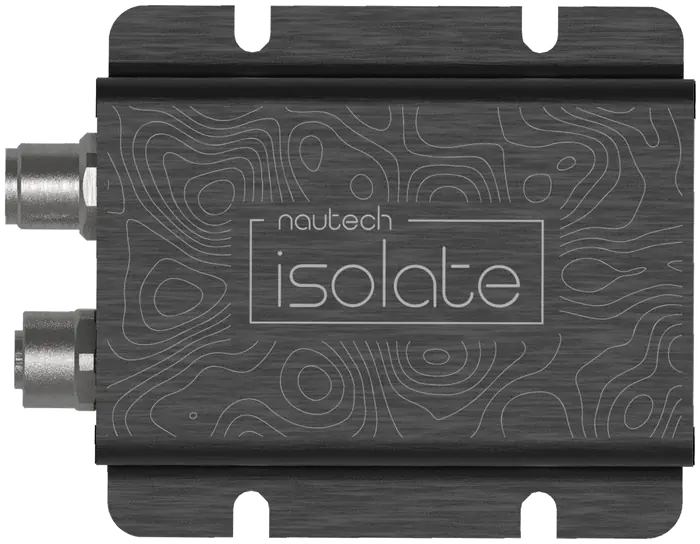

isolate
A floating 12 V DC-to-12 V DC converter that creates a galvanically isolated section of the NMEA 2000 network and helps protect connected equipment from electromagnetic interference and galvanic corrosion.
- Galvanic corrosion through floating DC-DC isolation
- Burst effects through overvoltage suppression
- Overcurrent through a self-recovering fuse
- Reverse polarity
- Noise through filtering on the DC supply
Coming soon
analog
Connects existing analogue sensors, such as fluid-level and temperature sensors, to the NMEA 2000 network and can be installed close to the measurement point.
- Fluid-level and temperature sensors
- Transmits over NMEA 2000
- Waterproof housing with the same environmental rating as core
Coming soon
extend
Adds eight relay outputs and eight contact inputs for larger digital-switching installations, with waterproof connectors for NMEA, contact and relay interfaces.
- 8 relay outputs and 8 contact inputs
- Physical fuse and software-configurable virtual fuse
- Voltage and current measured on each contact
- 4 A nominal per contact
Solutions
One platform for different marine operations
Configure Nautech around an individual yacht, charter fleet, fishing vessel, ferry or offshore workboat. The platform adapts to the vessel, operation and people responsible for it.
Charter operators and fleet managers
Monitor vessel positions, connectivity, system status, alarms, cameras and history from one place. Real-time information helps teams reduce manual checks, identify issues earlier and improve maintenance planning, vessel turnaround and fleet availability.
Distributors
A scalable platform that works with equipment already in your portfolio, supports retrofit and new-build projects and creates opportunities for cross-selling and ongoing technical services.
System integrators
Integrate existing NMEA, communication and power systems, then use remote access and diagnostics to support customers without unnecessary visits to the vessel.
Services
From operational need to installed system
We develop our own embedded networking, control and IoT products and integrate them into the vessel's wider onboard systems.
Network design
Vessel communication, control and power networks designed around operational requirements, existing equipment and future expansion plans.
Contact usSystem integration
We integrate separate hardware, software and communication systems so data can flow between them and connected components can operate as one coordinated system.
Contact usInstallation and technical support
Support from configuration and installation through commissioning, handover, remote diagnostics and future system extensions.
Contact usAbout us
Marine engineering for connected vessel systems
Nautech is a marine technology and engineering company specialising in connected onboard systems. We develop our own hardware and cloud software, then integrate them into the vessel's wider communication and power systems.
Our work spans leisure and professional marine applications, from individual vessels to multi-vessel operations. Projects include network design, system integration, installation and technical support.
Nautech is an NMEA manufacturer member.
Qualifications held by our engineers
- Chamber of Engineers membership
- Planning and expert authorisation for wired and wireless networks
- Safety engineering design and implementation authorisation
- Responsible technical manager authority
- Electrical safety inspector
Getting started
Three steps to get connected
-
Install core
Mount core and connect it to the NMEA 2000 backbone, power and antennas. Follow the installation guide or ask us to integrate the system.
Installation guide -
Create your account
Use one account for one or several vessels, then assign access and roles to the relevant owners, operators, crew or technical partners.
Create an account -
Add the vessel
Register core to the vessel. Connected instruments become available, history begins recording and authorised users can access the vessel from the app and dashboard.
Get the app
Contact
Tell us about your vessel or fleet
Share what is already on board, which information and functions you need, how many vessels are involved and where they operate. We will recommend the right configuration and integration approach.
